ADC Setup

NismoTronic supports logging and linear 0-5 volt sensor through any of the 4 ADC input channels on the NEMU

You can select either a pre-defined sensor from the drop down, log the raw voltage, or select a custom scaled sensor input

When selecting the Raw Voltage or Custom option, you can also change the name of the ADC channel to whatever suites your incoming signal

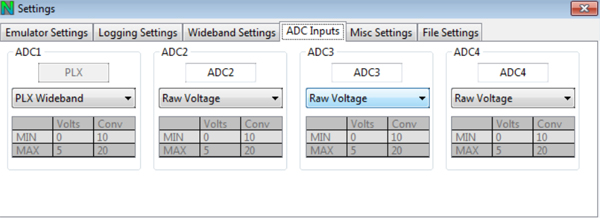

In this example we are logging a PLX wideband through the ADC1 channel

You can see the data screen and gauge screen also display the custom name for the ADC1 channel when displaying the data
